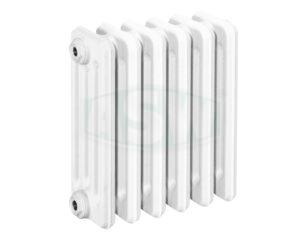

Berlin cast iron radiator DIN 4703 350/160, painted
H 430 mm D 160 mm
DIN cast iron radiator, type Berlin, in accordance with DIN 4703 and EN 442. Powder-coated version, RAL 9010. Standard hub spacing for easy replacement of old radiators without changing pipe distances. Connection sizes can be adapted with different thread sizes, as necessary (3/8”, 1/2”, 3/4”, 1”). Single element design in cast grey iron with a wall thickness of at least 2.5mm. Pressure stage 6 bar. Factory pressure testing with 7.8 bar. Heat capacity in accordance with EN 442. Delivery takes place with 21 elements in 2 blocks, including connecting nipples and seals. Blocks must be joined on-site according to the assembly instructions. On-site pressure testing before assembly is necessary. Please order connection plugs and seals separately.
| PU | 1 Piece(s) |
|---|---|
| Number of links | 31 |
| Build height in mm | 430 |
| Build depth in mm | 160 |
| Build length of each element in mm | 1860 |
| Approx. installation length incl. connections (mm) | 1890 |
| Heat output in watts 75°/65°/20° ΔT = 50K | 2325 |
| Heat output in watts 55°/45°/20° ΔT = 30K | 1860 |
| Hub spacing in mm | 350 |
| Heating surface in m2 of each element | 5.74 |
| Empty weight in kg | 146.32 |
| Water capacity in litres per element | 26.04 |
| Weight in kg | 172.36 |
Drawings and downloads
| Z308765.pdf |
| 308765.pdf |
